ArcFox

ArcFox Alpha T5

TBD

Excludes shipping & import duties

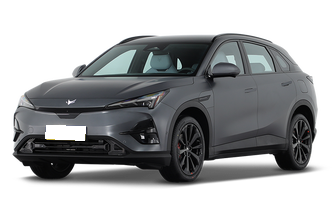

ArcFox ArcFox Alpha T5

Total Power (kW)

185 kW

Curb Weight

1,980 kg

Range (CLTC)

520 km

TBD

Specifications

Body Type

SUV

Fuel Type

BEV

Tramission

1-speed transmission

Drive

Front

Total Power (HP)

248 hp

Total Torque

360 Nm

Top speed

180 km/h

Acceleration 0-100 km/h

Battery Capacity

65 kWh

Consumption

14.7 kWh/100km

Battery Type

LFP

DC Charging

0.4 hours

Number of Doors

5

Number of Seats

5

Wheelbase

2,845 mm

L/W/H

4690/1936/1650 mm

See all specifications

Location

Shanghai, China

released

2024

Manufacturer

BAIC NEV

Price

Trim Levels

Arcfox Alpha T5 2024 520 Max TBD ›
Arcfox Alpha T5 2024 520 Air TBD ›
Arcfox Alpha T5 2024 660 Max TBD ›
Arcfox Alpha T5 2024 520 Pro TBD ›
Arcfox Alpha T5 2024 520 Max TBD ›
Arcfox Alpha T5 2024 660 Max TBD ›
Arcfox Alpha T5 2024 520 Air TBD ›
Arcfox Alpha T5 2024 520 Pro TBD ›
Arcfox Alpha T5 2024 520 Pro TBD ›
Arcfox Alpha T5 2024 520 Max TBD ›
Arcfox Alpha T5 2024 660 Max TBD ›
Arcfox Alpha T5 2024 520 Air TBD ›
Arcfox Alpha T5 2024 520 Air TBD ›
Arcfox Alpha T5 2024 520 Max TBD ›
Arcfox Alpha T5 2024 660 Max TBD ›
Arcfox Alpha T5 2024 520 Pro TBD ›
Arcfox Alpha T5 2024 520 Air TBD ›
Arcfox Alpha T5 2024 660 Max TBD ›
Arcfox Alpha T5 2024 520 Max TBD ›
Arcfox Alpha T5 2024 520 Pro TBD ›

Shipping Calculator

Estimate delivery costs to your location

Request Information

    By submitting, you agree to our privacy policy.

    150-Point Inspection Included

    Full Documentation Provided

    24-Hour Response Time

    Get Quote

    Model Info

    TitleArcFox Alpha T5
    Year2024
    TrimArcfox Alpha T5 2024 520 Max
    Price USDTBD

    Basic Information

    ReleasedFebruary 2023
    Fuel typeBEV
    MSRP at launch175,800 yuan
    Battery cell makerCATL (Ningde)
    L/W/H4690/1936/1650 mm
    DriveFront
    Top speed180 km/h
    Total power (kw)185 kW
    Total power (hp)248 hp
    Total torque360 Nm
    ManufacturerBAIC NEV
    Range (CLTC)520 km
    Battery capacity65 kWh
    Consumption14.7 kWh/100km
    ADASα-Pilot ADS

    Electric Motor

    Front electric motor peak power185 kW
    Front electric motor peak torque360 N·m
    Combined peak power (ps)252 Ps
    Combined peak torque360 N·m
    Electric motor typePermanent magnet / Synchronous
    Drive typeFront
    Number of electric motorsSingle motor

    Battery & Charging

    Battery pack warrantyUnlimited years/mileage for first owner
    Battery typeLFP
    Single pedal modeyes
    DC charge port locationLeft
    Battery Temperature Management Systemlow temperature heating
    Charging time (30-80%)Fast charging 0.38 hoursSlow charge 11.3 hours
    AC charge port locationLeft fuel tank position
    Charging time (30-80%)Fast charging 0.38 hoursSlow charge 11.3 hours
    AC charge port locationLeft fuel tank position
    Battery cell makerCATL (Ningde)
    CLTC electric range (mfr)520 km
    DC charging (30-80%)0.4 hours
    Range (CLTC)520 km
    DC charging volume30-80 %
    Petrol consumption equivalent1.7 L/100km

    Transmission

    Transmission1-speed transmission
    Number of gears1
    Transmission typeFixed Ratio Gearbox

    Wheels and Brakes

    Parking brake typeEPB
    Front brake typeVentilated
    Rear brake typeVentilated
    Rear tire size235/50 R19
    Front tire size235/50 R19
    Spare tire placementno
    Spare tire specificationno

    Chassis & Steering

    Front suspensionMacPherson independent suspension
    Car body structureLoad-bearing body
    DriveFront
    Steering typeEPS
    Rear suspensionMulti-link independent suspension

    Car Body

    Body typeSUV
    Number of doors5
    Wheelbase2,845 mm
    Number of seats5
    Curb weight1,980 kg
    Height1,650 mm
    Rear track1,640 mm
    Front track1,640 mm
    Width1,936 mm
    Length4,690 mm
    Gross weight2,430 kg
    Door opening methodConventional

    Exterior

    Alloy wheelsyes
    Sunroof typeNon-opening panoramic sunroof
    Active grille shutteryes
    Frameless doorsno
    Hidden door handlesyes
    Trailer hitchno
    Roof rackyes
    Motorized Spoilerno
    Sport Appearance Packageno

    Glass & Mirrors

    Rear tinted glassno
    Rear wiperno
    Acoustic glassFront row
    Rain sensoryes
    Inner Rearview Mirror FunctionAutomatic anti-dazzle
    Car Cosmetic MirrorDriver's seat + illumination
    Front windshield heaterno
    Heated water nozzlesno
    Exterior Mirror Functionmotorized regulation
    car interior sunshadeno
    power windowFront

    Lights

    Adaptive high/low beamsyes
    Adaptive frontlighting systemno
    Front fog lightsno
    Low beamsLED
    Headlights featuresno
    DRLyes
    Automatic headlightsyes
    Interior ambient lighting256-color
    High beamsLED
    Headlamps with steeringno AFS
    Headlight rain and fog modeno
    Active ambient lightingno
    Headlamp wash functionno
    Headlights height adjustmentyes

    Interior

    Instrument cluster stylesno
    Car screenno
    Steering wheel adjustmentVertical & horizontal
    Second row screenno
    Center screen diameter15.6 inch
    Steering wheel materialLeatherette
    Steering wheel functionsMulti-Function
    Steering wheel power adjustmentno

    Seats

    Sport seatsyes
    Rear cup holdersyes
    Rear seat folding ratio40:60
    Power seat adjustmentsDriver's Seat
    Boss keyno
    Second row tablesno
    Seats materialLeatherette
    Passenger seat overall adjustmentForward and backward movement
    Partial adjustment of the passenger seatno
    Front/Rear ArmrestFront
    Front Seat FunctionHeating
    Partial adjustment of the second row of seatsno
    Integral adjustment of the second row of seatsno
    Heated/cooled cup holdersno
    Captain chairs in the second rowno
    Second row seat functionHeating

    Comfort & Anti-theft Systems

    Wireless charging padyes
    12V outlet in trunkno
    Keyless entryWhole car
    Wireless charging pad peak power50 W
    Remote car startyes
    Vehicle summoning functionno
    HUDyes
    Inductive power tailgateyes
    ETCoptional
    110V/220V/230V power outletyes
    Keyless startyes
    Power door suctionno
    Central locking systemyes
    Vehicle remote controloptional
    Active noise reductionno
    Power tailgateyes
    Remote key typeSmart Remote Key
    Power tailgate with memory functionyes

    Air Conditioner & Refrigerator

    Air purifierno
    Climate control2-zone AC
    Car fragnance diffuserno
    Rear A/C controlno
    Negative ion generatorno
    A/C control methodAuto
    Heat pump systemyes
    Car Refrigeratorno
    Rear air ventsyes

    Car Control & Driving Assist

    Low speed driving warningyes
    Air suspensionno
    Automatic ramp exit/entryno
    Parking memoryno
    Hill start assistyes HAC
    Regenerative brakingyes
    Rear driving assistoptional
    AutoHoldyes
    Adjustable suspensionno
    Hill descent controlyes HDC
    Automatic parkingoptional
    Variable steering rationo
    Driving Mode SelectionSport
    cruise controlcruise control
    Integral Active Steeringno
    Driver Assistance VideoRearview camera
    Automatic Lane Change Assistyes
    parking radarFront
    Center differential locking functionno
    Front vehicle start reminderyes
    Driving assist levelL2
    Electromagnetic induction suspensionno

    Active Safety

    Brake assistyes
    Traction controlyes
    Blind spot monitoringyes
    Active brakeyes
    ABSyes
    Traffic lights recognitionno
    Lane keeping assistyes
    Driver monitoring systemoptional
    Fatigue driving alertoptional
    Lane centeringyes
    In-car life detection systemoptional
    Electronic brake force distributionyes
    night vision systemno
    Vehicle stabilization systemyes
    Traffic sign recognitionyes
    Active safety warning systemLDW

    Passive Safety

    Central airbagno
    Side curtain airbagsyes
    Child seat interfaceyes ISOFIX
    Tire pressure monitoring systemTire pressure display
    Seat belt reminderyes
    Safety Tireno
    side airbagFront row
    Front knee airbagsno
    Front airbagsdriver's side
    Passive pedestrian protectionno

    Intelligent Systems

    Sentinel modeno
    V2X connectionno
    Number of ultrasonic radars8
    ADASα-Pilot ADS
    Mobile App Remote ControlVehicle monitoring

    Intelligent Connectivity

    OTA upgradeyes
    Facial recognitionoptional
    Voice recognition systemyes
    Bluetooth/Car callsyes
    Telematics systemyes
    Continuous speech recognitionyes
    Smart voice interactionyes
    Gesture control functionno
    AR Live Navigationno
    voice recognitionno
    Voice assistant trigger wordsXiao Fox
    Mobile Connected MappingHicar
    4G/5G networks4G
    emotion recognitionno
    Fingerprint recognitionno

    Digital Entertainment

    Number of speakers8
    Active noise cancellationyes
    App storeno
    Rear multimedia controlsno
    Acoustic brandno
    multimedia interfaceUSB/Type-C
    Car TVno
